ZHONGSHAN SKONE ELECTRIC APPLIANCE CO.,LTD



  DC12V UV LED M3 Mosquito trap



Model: M3-S

DC12V Adaptor used

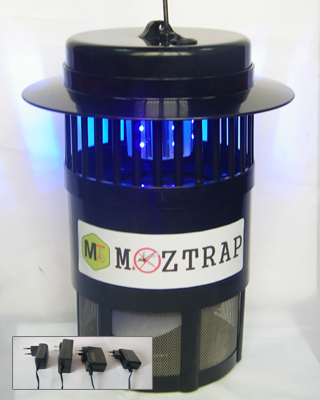

M3 - S Mosquito Trap







Effectively reduce or eliminate biting insects indoors or outdoors.
The Model M3 - S Mosquito Trap without chemicals being added to the environment or the surrounding areas of usage. Protect your house from flying insects without the use of pesticides or noisy zappers.

Product Description
UV fluorescent bulbs produce warm light to attract insects to the M3 - S mosquito trap.
The TiO2 - titanium dioxide exclusive coated funnel produces CO2 which is irresistible to mosquitoes, luring the insects to the powerful yet whisper quiet vacuum fan. Insects are collected and trapped into the retaining cage, where the insects expire naturally.

Unlike other mosquito control solutions, the M3 - S Mosquito Trap has no "popping" sound to disturb your outdoor enjoyment. Simply hang the M3 Mosquito Trap, and mosquitoes stay away.
Perfect to use in your backyards, barn, patio areas, gardens, porch and near swimming pools.

Features

New design UV LED lamp
Long life UV LED, brushless DC fan
DC12V operation (90V~240V adaptor transfer DC12V)
Patent 3-WAY Insect trap
Safe for indoor and outdoor use
No expensive attractant refill or propane necessary
Lightweight and easy to install
Low maintenance
Whisper-quiet operation
Pesticide and odor free
Provides up to 1/2 acre coverage for pest control
Durable all-weather construction

  AC 110/220V M3/M3-S DC12V M3-S
Voltage AC110V 60HZ, AC 220V 50HZ DC12V
Power 22Watt 14 Watt
Dimensions: 24cm * 24cm * 31cm 24cm * 24cm * 31cm
UV LED quantity   9 pcs 365nm; 9 pcs 390nm
UV lamp 9W (G24 UV black lamp)
Lamp lifetime 3000~5000 hours >50000 hours
Approvals: CE/ROHS/ETL CE/ROHS
Power Cord 2.2 meter 2.0 meter

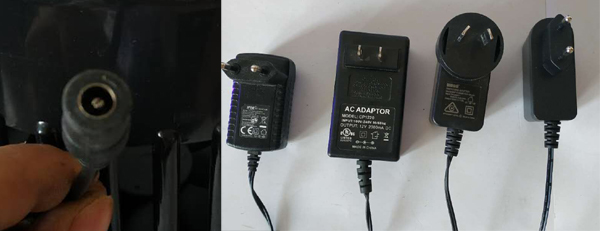

Adator   12V 1A
Warranty One year One year




Packaging
Inner carton Size: 25cm 〜 25cm X 32.5cm
6 PCS per outer carton
Outer carton size: 77cm 〜52cm 〜34cm
Outer carton volume: 0.136cbm
Outer carton G.W.: 13.5kg
20 FT container quantity: 1188 pcs
40 FT container quantity: 2376pcs
40 FT HQ container quantity: 2988pcs

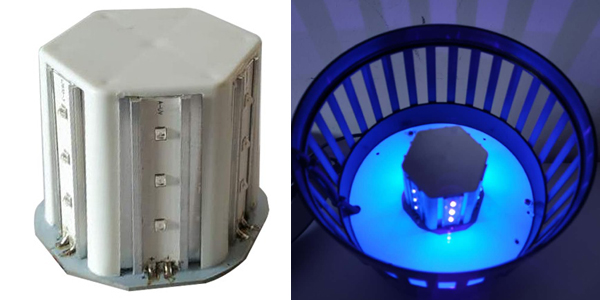

UV LED Lamp

DC12V UV LED Mosquito trap lamps.

5 PCS 365 nm Wavelength UV LED

1 PCS 396 nm Wavelength UV LED

G24 socket

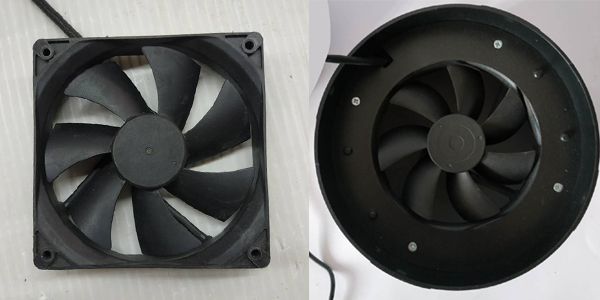

DC12V Brushless motor

Long life design

Model:12025 Two ball motor

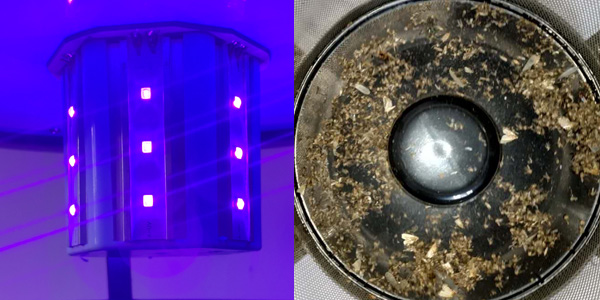

9 PCS 365nm wavelength UV LED

9 PCS 390nm wavelength UV LED

Total: 5 Watt

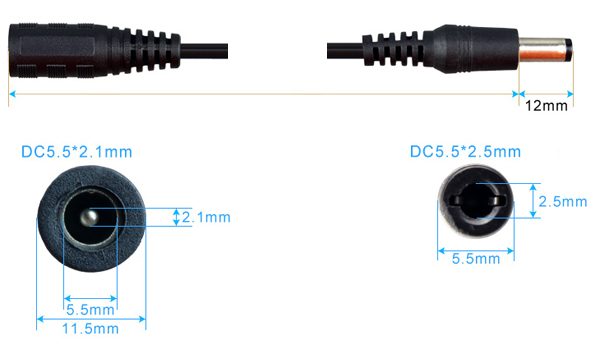

DC12V 5.5*2.1mm socket

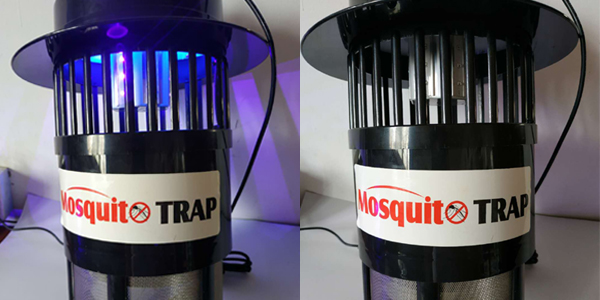

M3-B mosquito trap

It is good effect and nice LED lamp.

M3-S Mosquito trap

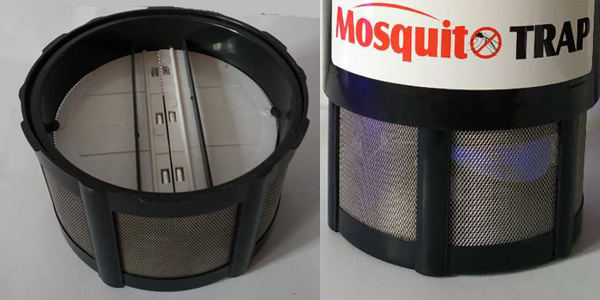

Auto-door. When mosquito trap working on, the auto-door auto open; when power off the auto-door will close.

Air-Actuated Gate System Prevent captured mosquitoes from escaping.

Our patented gate system employs a butterfly check valve downwind of the motor which is opened by airflow from the fan and closed by counter-balancing weights. The gates are made of ABS material and are entirely maintenance free.



  Installation Instructions:
Unpack unit. Save box for off-season storage. Plug cord into an outdoor outlet or UL-Listed extension cord. For best catch results leave unit on at all times, except when cleaning or servicing. Catch rate activity will be higher at night. For best catch results it is recommended to place unit away from other competing light sources.

Cleaning Instructions:
Switch unit off and unplug before cleaning. Remove the collection chamber/retaining cage with a twisting motion, turning clockwise. Empty insects into trash container and brush off collection chamber/retaining cage (brush included) and fan. Replace collection chamber/retaining cage with a simple twist.

Important safety Instructions:
1. Always turn unit off and disconnect plug before servicing, cleaning, or changing bulbs.
2. Using a small brush and soapy water, carefully clean the fan and the funnel. Ensure that water is not allowed to enter into the Fan Motor.
3. Collected insects within the unit may contribute to fire, so clean insects from the unit frequently.
4. In order to prolong the life of your device, stand in a dry place when not in operation.
5. Mount product out of reach of children.
6. Keep cord away from heat, oil, or sharp edges.

Purifies air through photocatalysis & Sterilizes sundry bacteria
Using TiO2, ATTENTION-GETTER of ENVIRONMENT PURIFICATION FIELD.
A smoke/insecticide-free mosquito trap which simultaneously purifies air and exterminates mosquitoes has been specially devised.
It is absolutely harmless on environment, livestock and pets, for it is insecticide free.

TiO2 Photocatalyst Introduction
The effect of photocatalysis used in TiO2 pays attention in the field of pro-environment.
Titanium dioxide, also known as titania, is the naturally occurring oxide of titanium. TiO2 was approved as a food additive in 1968 by the USA.
At present, TiO2 is used in making chocolates and is a totally harmless materials to the human body.
Photocatalysis is a disintegration that uses light-energy with TiO2 as a catalyst. TiO2 is not changed so can be used permanently. In case there is a little ultraviolet ray from the sun or lamp, TiO2 purifies air and sterilize ill-smelling molecule by response to organic matter on the surface of TiO2.

Using energy from light, TiO2 creates two oxidation reactants: hydroxyl radicals and superoxide anion which decomposes toxic organic substance by oxidation.
